Hardware & products

Livox & Hesai LiDAR sensors, shipped on invoice.

Beyond the OWL EYE® system we resell selected LiDAR sensors, handheld scanners, mounts and connectors — for engineering teams that want to source their components through a partner that actually uses them in the field.

What's in our portfolio

Sensors and tools we use ourselves.

Every product on this page is hardware we deploy in our own OWL EYE® installations. We sell it separately because customers regularly ask "where did you source that sensor?" — and the honest answer is easier than walking them through three distributors.

Pricing follows a transparent model: list price plus our standard logistics handling. No demo discounts, no inflated retail markup. Invoiced delivery to commercial customers within Germany and the EU; quote on request for non-EU.

Standard accessories ship within a week from our own warehouse. Sensors ship within 1–3 weeks depending on manufacturer stock. Custom-housing or multi-sensor calibration packages: 2–4 weeks.

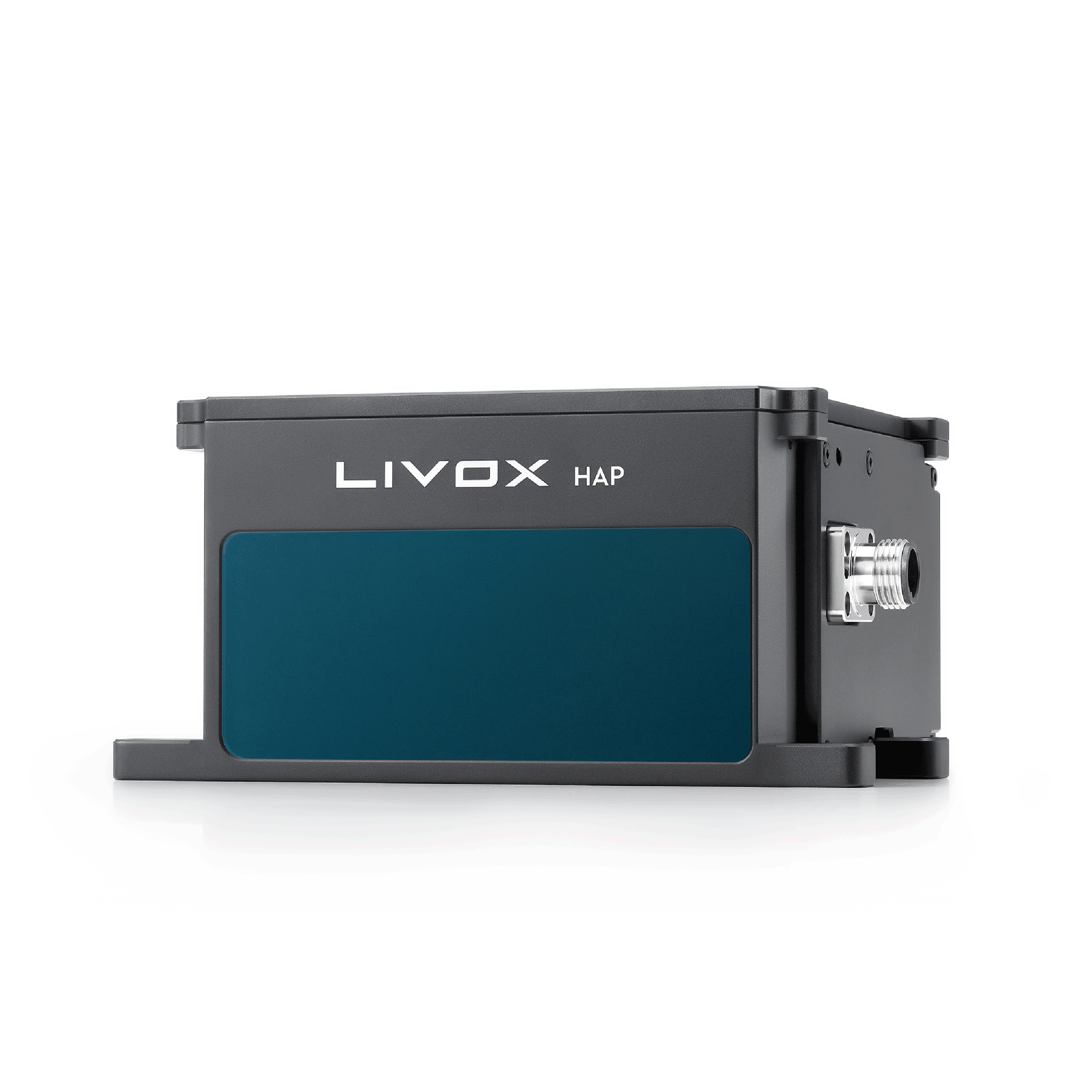

Note: the Livox HAP has been discontinued by the manufacturer — for wide portal mounts, its successors in our lineup are the Livox Mid-360S and the Hesai JT128.

„If we install it, you can buy it from us."

Same hardware as in 40+ live OWL EYE® installations across Europe.

LiDAR sensors

Livox & Hesai 3D-LiDAR — the four we use most.

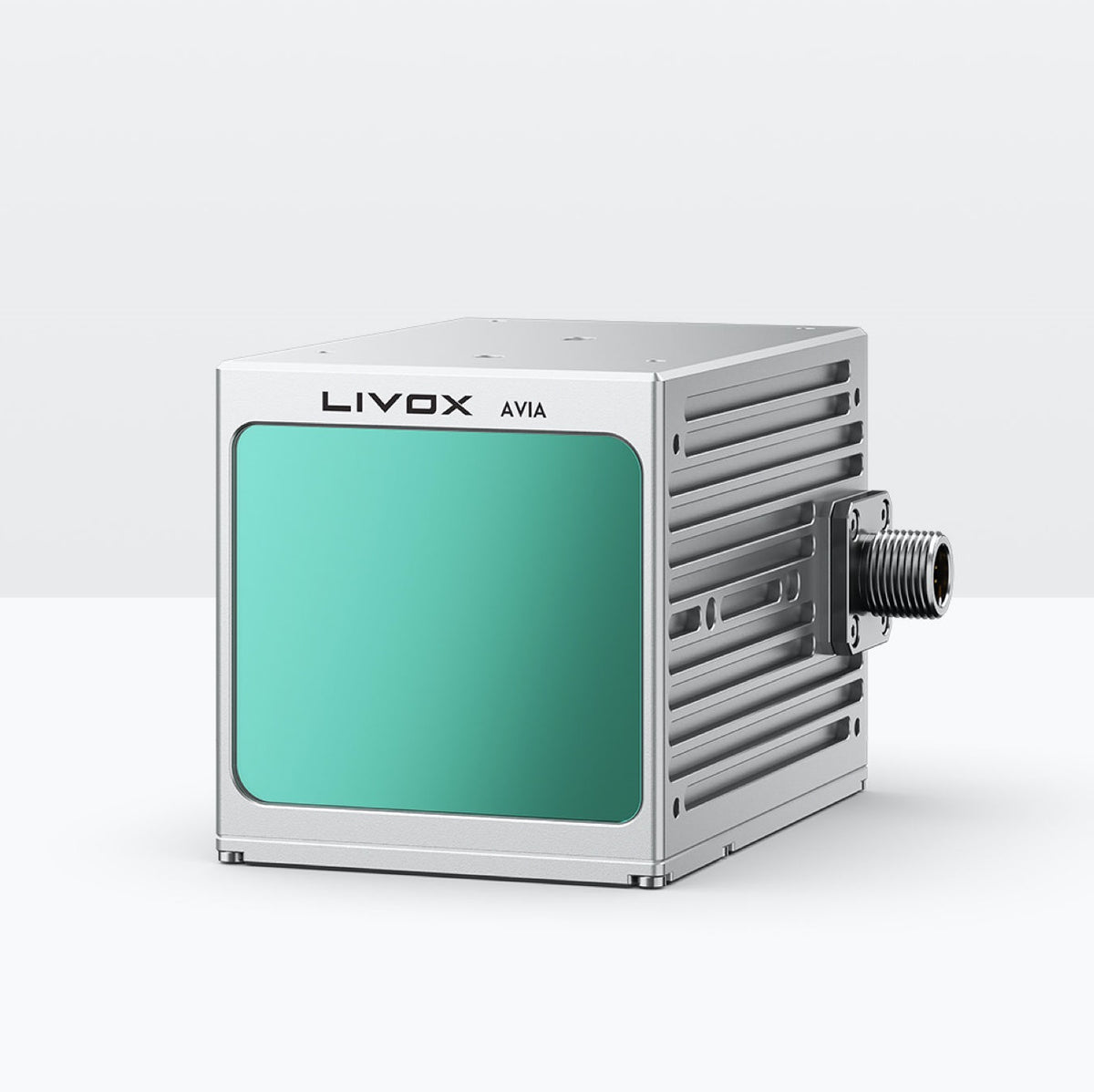

Livox Avia industrial 3D LiDAR sensor — long-range survey-grade unit

Livox Avia

Range: up to 450 m · FoV: 70.4° × 77.2° Points/s: 240 000 (triple return) · Wavelength: 905 nm Class: Class 1 (eye-safe) · IP: IP67 Long-range survey-grade unit. Triple-return enables foliage penetration on outdoor sites. Our default for stockpile mapping on yards >1 ha, mining benches, large quarry surveys. Typical applications: outdoor stockpile-monitoring towers, mobile drone-mapping rigs, mining-bench surveys. Price on request — invoiced, no prepayment. Download user manual (PDF) →

Request a quote →Angebot anfragen →Zapytaj o ofertę →Richiedi un preventivo →Demander un devis →Solicitar presupuesto →Solicitar orçamento →

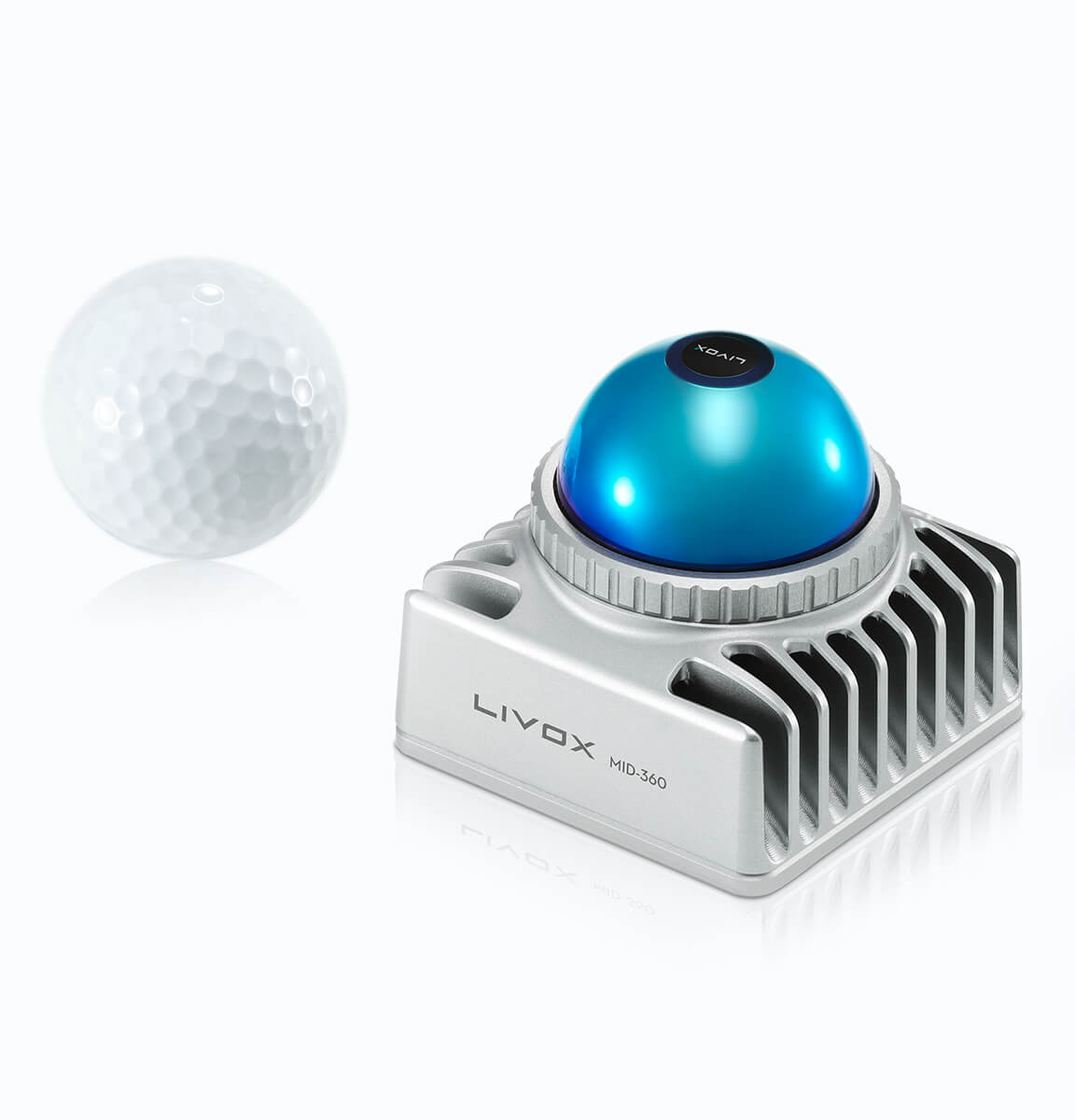

Livox MID 360S spherical 3D LiDAR — 360° coverage, golf-ball size reference

Livox MID 360S

Range: up to 70 m · FoV: 360° × 59° Points/s: 200 000 · Wavelength: 905 nm Class: Class 1 (eye-safe) · IP: IP67 Spherical coverage in a compact package. Single sensor replaces a multi-sensor cluster for many use cases. Lightweight enough for handheld and drone integrations. Typical applications: mobile-mapping rigs on wheel loaders, indoor-SLAM applications, bunker monitoring from the lid, mobile-robot navigation. Price on request — invoiced, no prepayment. Download user manual (PDF) →

Request a quote →Angebot anfragen →Zapytaj o ofertę →Richiedi un preventivo →Demander un devis →Solicitar presupuesto →Solicitar orçamento →

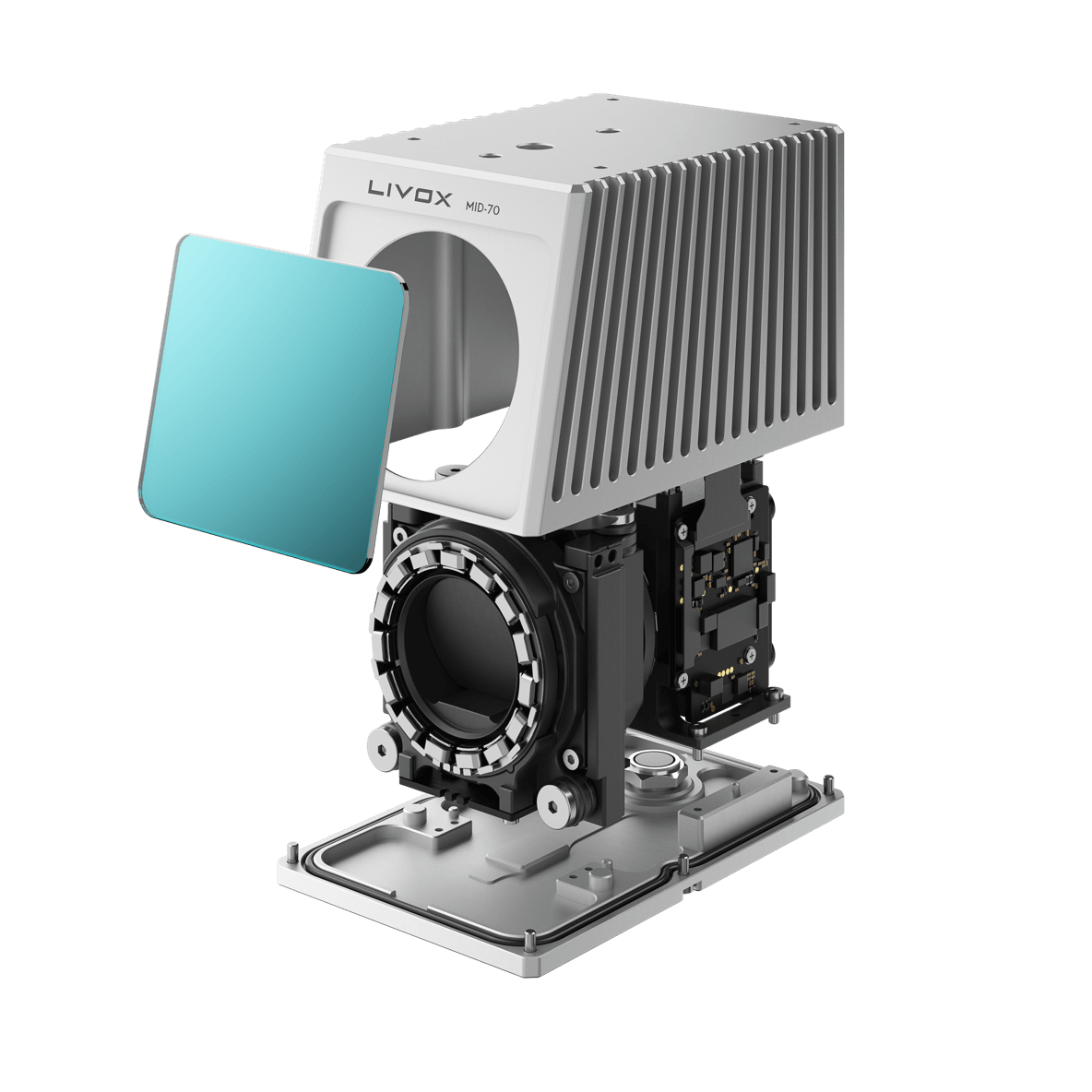

Livox MID 70 compact 3D LiDAR — high-density square FoV

Livox MID 70

Range: up to 90 m · FoV: 70.4° × 70.4° Points/s: 100 000 · Wavelength: 905 nm Class: Class 1 (eye-safe) · IP: IP67 Compact, high-density 3D capture in a square FoV. Cost-effective workhorse for fixed-position monitoring. Our default sensor for stockpile-monitoring units mounted under warehouse roofs. Typical applications: fixed stockpile-monitoring sensors, conveyor cross-scans, indoor pile capture. Download user manual (PDF) →

Request a quote →Angebot anfragen →Zapytaj o ofertę →Richiedi un preventivo →Demander un devis →Solicitar presupuesto →Solicitar orçamento →

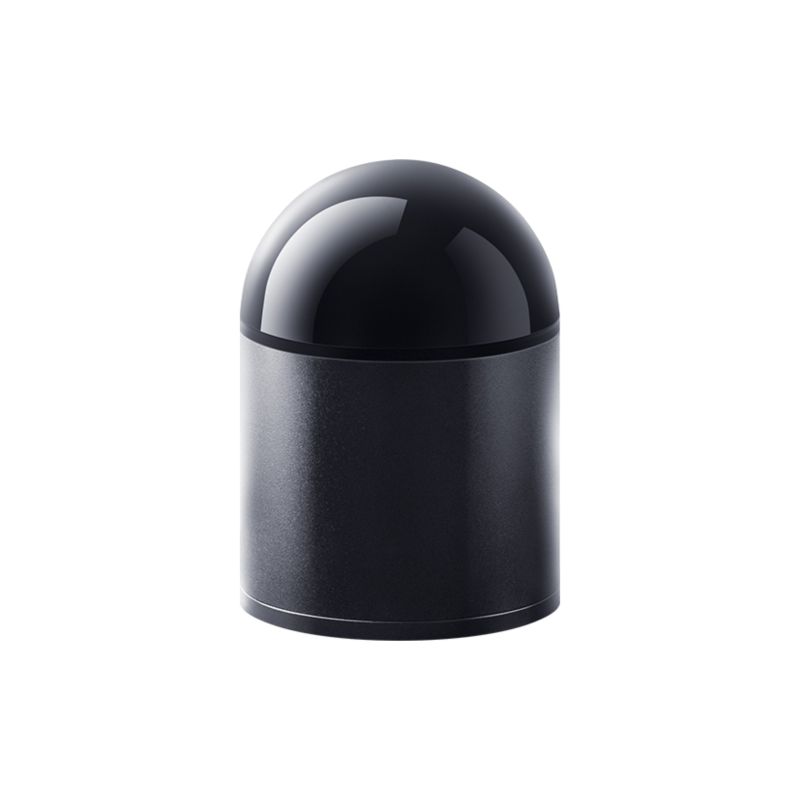

Hesai JT128 mini hyper-hemispherical 3D LiDAR sensor — 360° × 189° field of view

Hesai JT128

Range: up to 60 m (40 m @ 10%) · FoV: 360° × 189° Points/s: 1,152,000 · Channels: 128 Class: Class 1 (eye-safe) · IP: IPX7 Hyper-hemispherical coverage — 360° horizontal and 189° vertical with no blind zone above the sensor. 128 channels at 265 g: the highest short-range point density on our list — for wherever a single sensor has to see everything around it. Typical applications: robotics navigation, indoor mapping, top-down bunker monitoring, mobile platforms. Price on request — invoiced, no prepayment. Full details & specs →

Request a quote →Angebot anfragen →Zapytaj o ofertę →Richiedi un preventivo →Demander un devis →Solicitar presupuesto →Solicitar orçamento →

Custom configurations

Multi-sensor bundles with calibration package — paired MID 70 + MID 360S units, time-synchronised, factory-calibrated to your mounting geometry. IP65/IP67 housings in stainless steel or anodised aluminium, with PoE+ injectors and surge protection. Communication options: Industrial Ethernet, Modbus TCP, OPC UA, MQTT — your fieldbus, your protocol. Drop us a line and we'll quote within two business days.

Request a quote →Angebot anfragen →Zapytaj o ofertę →Richiedi un preventivo →Demander un devis →Solicitar presupuesto →Solicitar orçamento →
Why through us?

We field-test before you order.

Every sensor we list has logged at least 1 000 hours in our own OWL EYE® installations before we'll resell it. If a manufacturer releases a new model, you'll only see it on this page after we've proven it in the dust, the rain and the cold of an active mining site.

That's why our list is short. We deliberately do not stock every LiDAR sensor on the market — only the ones we trust enough to put our brand next to.

Every order ships with a one-page field-deployment note: the mounting tips, common pitfalls and the calibration notes from our own installations. Information you won't find in the manufacturer spec sheet.

„We don't sell what we wouldn't run on our own roof."
Handheld scanner

FJD Trion P1 — SLAM in your hand.

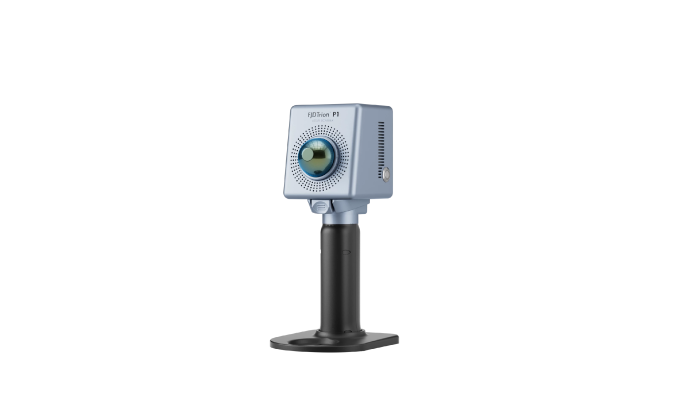

FJD Trion P1 handheld 3D LiDAR scanner with SLAM — mounted on tripod

Lightweight SLAM scanner

Weight: 1.0 kg · Range: 120 m Accuracy: ±2 cm relative · IP: IP54 Handheld 3D-laser scanner with onboard SLAM — no GPS, no ground-control points needed. Walk through a hall, walk through a tunnel, get a registered point cloud at the end. IMU-fused inertial tracking compensates for hand movement. Single battery covers a full 90-min walk.

Request a quote →Angebot anfragen →Zapytaj o ofertę →Richiedi un preventivo →Demander un devis →Solicitar presupuesto →Solicitar orçamento →

Real-time on-site preview

Live 3D point-cloud preview on the device's 6" touchscreen — see what you're capturing, fix gaps before you leave site. Loop-closure feedback shows you when you've covered an area sufficiently. No more re-visits because of holes in the data. Onboard storage 256 GB · WiFi for remote-tablet preview.

Standard exports

E57, LAS, LAZ, PLY, OBJ, PCD — open formats so you stay independent of any single processing-software vendor. Tested with CloudCompare, RiSCAN PRO, Maptek, Leica Cyclone, Bentley Pointools — and our own OWL EYE® dashboard. Coordinate systems: WGS84, ETRS89, local. Point cloud + trajectory.

Accessories

Mounts and connectors — the small parts that hold it together.

Livox MID 360S bracket

Material: anodised aluminium · Weight: 220 g Fasteners: M6/M4 or 2× M10 · Adjustment: ±35° tilt + ±90° rotation Adjustable-axis mounting bracket for the MID 360S. Fits standard industrial profiles (Bosch / Item 30 mm), wheel-loader cabin rails, drone mounts. Comes with vibration-damping inserts.

Livox M12 connector

Type: M12 8-pin X-coded · Rating: IP67 Cable: PUR jacket, 5 m / 10 m / custom Combined power, Gigabit Ethernet and functional cable in one M12 connector — replaces the original fly-lead when you need a serviceable industrial connection. Available pre-terminated or as a field-assembly kit.

Datasheets & manuals

All technical docs in one place.

Need the full spec sheet, the calibration certificate template or the integration manual? We keep the current revision of every document we ship in our shared download area.

Common documents:

- Livox Avia / MID 360S / MID 70 — full datasheets (PDF) - FJD Trion P1 — user manual + post-processing guide (PDF) - Mounting brackets — STEP / DXF drawings (CAD) - OWL EYE® integration guide — how the resold sensors plug into our software stack (PDF) - EU Declaration of Conformity — CE / UKCA marking (PDF)

Drop us a line with the model number — we send the document set back the same business day.

„Every order ships with a one-page field-deployment note from our own installations."
How to order

Just write — we reply within one business day.

We don't run a public web shop. Send your part list (model + quantity + ship-to address + your VAT-ID for EU customers) by email and we send back a written quote within one business day, usually same day.

Standard delivery is invoice-based for commercial customers in Germany and the EU. Lead time is typically 1–3 weeks depending on the manufacturer's stock; for accessories we keep small quantities in our own warehouse and ship same-week.

Need an unusual configuration — multi-sensor calibration, custom housing, integration with your own software? Same email, same one-day reply. For custom perception software on top of the hardware — object detection, point-cloud classification, worker safety — see our Industrial Perception AI service.

„No webshop. No hidden fees. Just an email and a written quote."
